LV Coil Winding Machine

Home/Transformer Winding Machine/Low Voltage Transformer Coil Winder/LV Coil Winding Machine

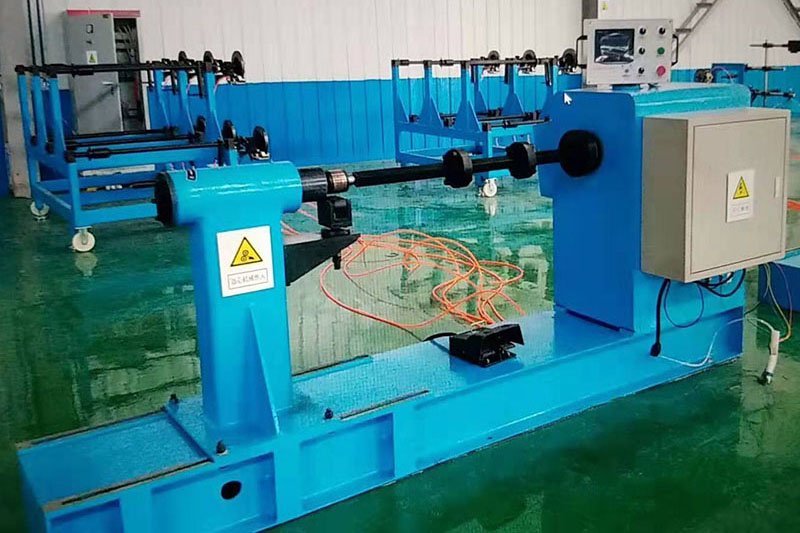

  • View Larger Image LV Coil Winding Machine

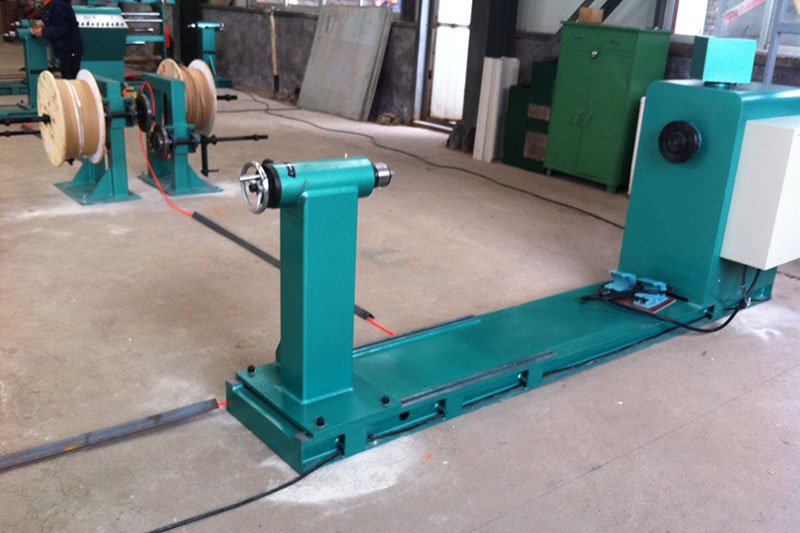

  • View Larger Image LV Coil Winding Machine

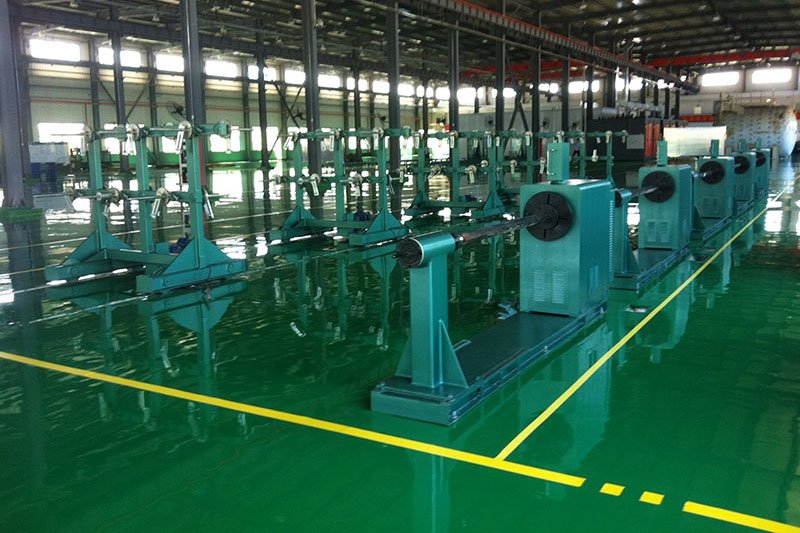

  • View Larger Image LV Coil Winding Machine

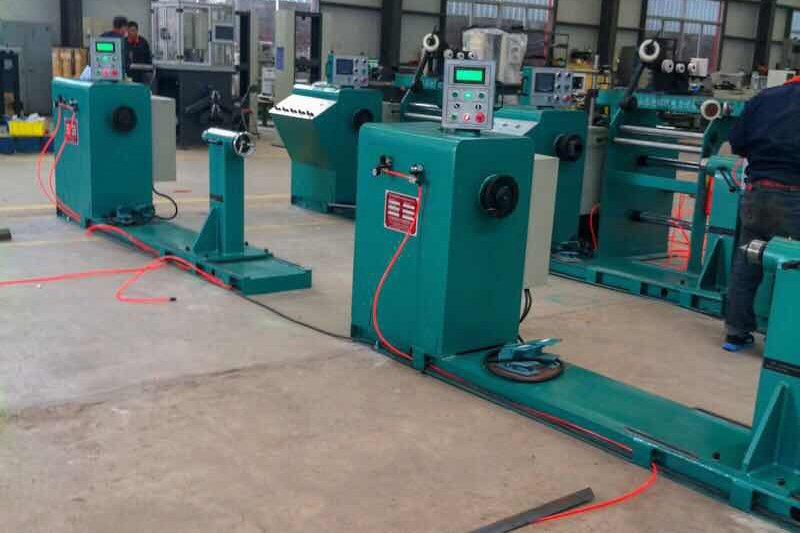

  • View Larger Image LV Coil Winding Machine
  • View Larger Image LV Coil Winding Machine
LV Coil Winding Machinedirakesales@gmail.com2020-12-25T09:40:13+00:00
  • Description

  • Specifications

  • Video

  • Get Latest Price

  • Description

LV Coil Winding Machine

Model:RX-2

It is used for winding transformer and electric motor coils. suitable for round or rectangular wires,winding into round,oval or rectangle shape coils.you can  find the right machine for almost all needs. We also provide customized coil winders built to customer requirements.if you look for automatic wire winding machines or foil winding machine,please check them.

Features for LV Coil Winding Machine

  1. the machine consists of a counter with memory and digitalcorrespond withPLC.
  2. Ten or twenty coil drawing can be saved on this unit,you do not have to keep entering recipes for coils,save your time and cost.
  3. The machine controls the winder’s speed,start,stops and constant wire tension irrespective of the coil winding methods.
  4. The main axis box and the tailstock are integrated for easy installation, and the concentricity of the inner hole of the spindle from main box and tailstock is less than 0.1mm, so that the winding mold runs smoothly and the service life of the winding mold is extended.

Composition

main axis box

  • The transmission part is in the spindle box. The power is output by the motor, transmitted to the reducer through the pulley, and transmitted to the spindle through the chain. Finally, the winding mold is rotated by the winding mold connection disk in the front section of the spindle.

Tailstock

  • The tailstock can move 0-200mm back and forth on the base. The T-screw is used for back and forth movement. Locking and moving are completed by the moving handle, which is very flexible and reliable.

bottom seat

  • Welded with high-quality steel plate and H-beam, it is an integrated structure, which ensures the strength  and accuracy of the whole machine and improves machine’s stability.

control system

Main component and supplier

Name Supplier 1 Supplier 2
frequency converser Mitsubishi Inovance
Programming controller PLC Mitsubishi Inovance
Touching screen Mitsubishi Inovance
Foot switch Taiwan Taiwan
Power button Schneider or DELIXI Schneider or DELIXI
  • Specifications

No. Item Parameters
1 Type RX-2
2 Max bearing weight(kg) 2000
3 Winding speed(r/min) 0-60
4 Spindle center height(mm) 1100
5 Motor power(Kw) 4
6 Distance between main axis and end box(mm) 800-2000
  • Video

Your Content Goes Here

  • Get Latest Price

$4000 – $7500 / Set FOB QINGDAO

MOQ: 1 Set

Shipping: Support Sea
freight lead Time:
Quantity(Sets) 1 – 1 >1
Est. Time(days) 30 Negotiable

After-sales Service Provided: Field maintenance and repair service, Field installation

[contact-form-7 id=”193″][/contact-form-7]
