# Transformer Winding Machine

200+ Happy CustomersWorldwide

Increase effiency 50%- 100%

Coil Width reduce 3-5mm

Coil more stronger against short circult

Basic operation in 3 days, Skilled in 7 days.

Get Quote in 12 hours

    GETTING IN TOUCH!

    made by imhunk

    Transformer winding machine Category

    HV Transformer Winding Machine

    Suitable for Winding HV coils for Distribution Transformers, Reactor using round and flat conductors.Transformer winding machine

    Transformer Coil Winding Machine
    wire winding machine

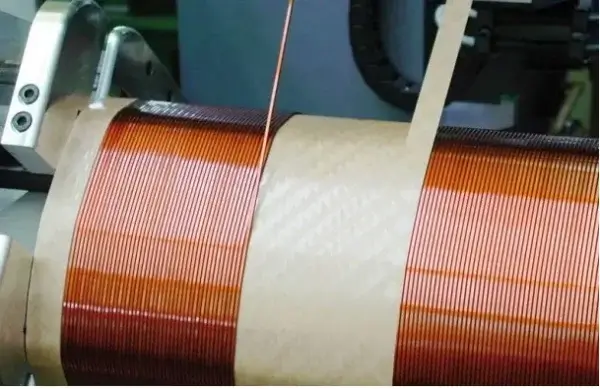

    HV Winding Machine with insulation strip

    It adopts semi-automatic insulation strip guiding and automatic wire guiding, Insulation layers built in a graded profile with thickness varying in proportion to the voltage differential .

    Transformer winding machine Category

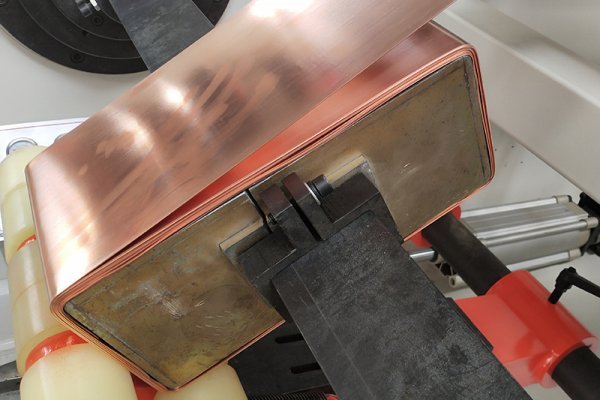

    LV Foil Winding Machine

    It is designed to wind LV transformer coils.it can wind one or two foils made of copper or aluminum. Uniform and continuous tension is provided during winding, ensures smooth and tight foil winding.



    LV Foil Winding Machine

    copper foil winding machine

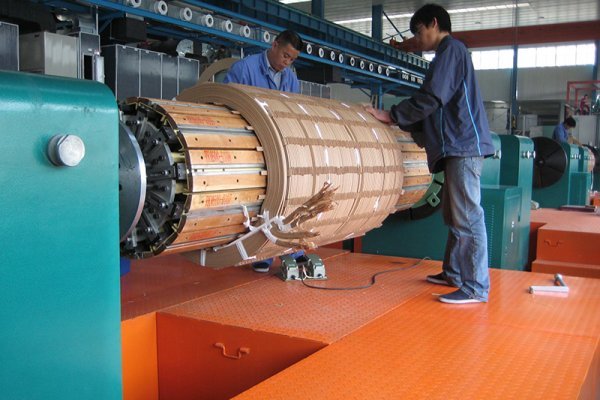

    Horizontal Coil Winding Machine

    LV Wire Winding Machine

    It is suitable for winding Primary coils of transformer and reactor from 0.5tons to 10 tons

    Horizontal Coil Winding Machine



    LV Wire Winding Machine

    Suitable for winding distribution transformer BELOW 1600KVA, motors, and small coils NOT more than 1000KG. Constant torque with Frequency conversion speed regulation. Medium duty coil winding machines can wind round or flat wire.  can wind to round, oval, and rectangle shape coil.

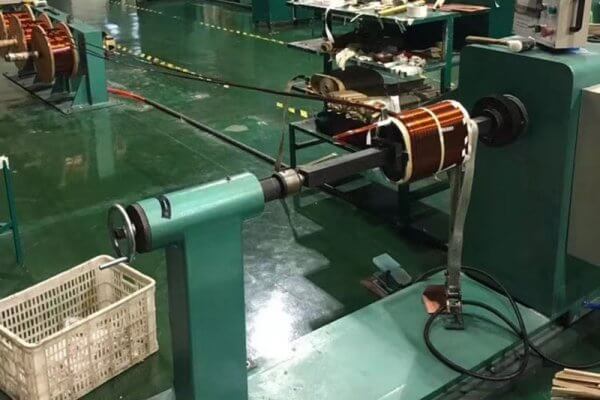

    LV Winding Machine

    LV Coil Winding Machine

    Transformer Winding Machine Working Video

    Loved & Trusted By

    ABB

    CHANDZHOU TOSHIBA TRANSFORMER

    CHINA XD

    NANTONG HYOSUNG TRANSFORMER

    STATE GRID XUJI GROUP

    TEBA SHENYANG TRANSFORMER GROUP

    DELIXI

    JAPAN NORTH ELECTRIC

    NISSIN ELECTRIC

    SANBIAN SCI TECH

    Customization is Accepted

    Double Wire Guider

    After the low-voltage coil is completed, the high-voltage coil can be directly wound on the machine.
    No need to replace the machine.

    transformer winding machine

    Double Servo With Core Clamp

    Very suitable for winding coils directly on the Cores of Reactor or Transformer.

    Double Servo Foil Winder

    It is Perfect for winding low voltage foils on the cores directly.

    Customers Visit

    Customers Feedback

    Our Strong Package

    Put Machine in the Box

    Our workers will put all parts of the machine on the base of the wooden box with a crane.

    Fix the Machine on the Floor

    Fix the bottom of the machine on the base of the wooden box with wooden strips and long screws to prevent the machine from shaking during transportation.

    Packing Finished

    After the machine is all fixed, fix the other sides of the wooden box
