High Torque Transformer Winder

Home/Transformer Winding Machine/Low Voltage Transformer Coil Winder/High Torque Transformer Winder
  • View Larger Image Transformer Winder
  • View Larger Image Transformer Winder
  • View Larger Image Transformer Winder
  • View Larger Image Transformer Winder
High Torque Transformer Winderdirakesales@gmail.com2020-09-08T07:29:46+00:00
  • Description

  • specifications

  • video

  • Get Latest Price

  • Description

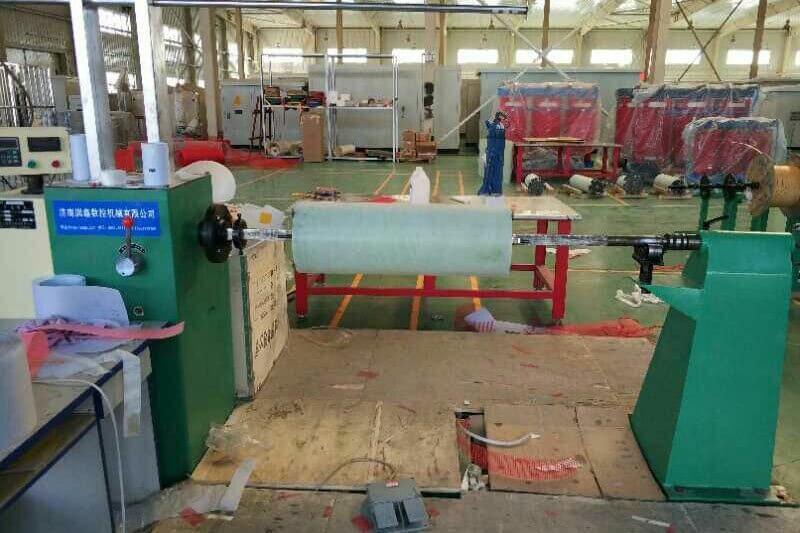

High Torque Transformer Winder

It is used for winding transformer, reactor HV and LV coils in many kinds of shapes.

Characteristic:

  1. the machine use copper worm gear casting gearbox, large torque, self-locking when power off.
  2. the machine adopts mechanical shifting speed and frequency conversion speed regulation.mechanical shifting speed has high and low gears,and the frequency conversion stepless speed regulation per gear. It ensure whole equipment startup process smooth and braking accurate and reliable.
  3. The electric system consists of electric control box,frequency converter,electronic counter,foot switch and other electrical appliance.speed of the spindle is controlled bythe frequency converter,speed of spindle,number of turns can be displayed. The counter can positive counting and reversal counting,has power-off memory,automatic stop function at setting turns.foot switch can operate whole winding process.counter value ranges 0-9999 turns.

    Composition of High Torque Transformer Winder

    main box

    tail stock

    transmission system

    shifting handle

    electric system

    Foot switch

    Main part material

    Gearbox Copper worm gear casting gearbox, large torque, self-locking when power off
    Bedside box Welding using Q235-A
    Bottom seat Welding using thick-walled square tube, Q235-A
    End box Welding using Q235-A

    The main shaft box, the tail box and the base are all made of high-quality steel. They are made of CO2 gas-shielded welding and welded, and then processed after aging treatment. The welding quality is good and the processing precision is high, so that the performance of the whole machine after assembly is stable and reliable.

    Company information

    Jinan Shuohao Machinery Co., Ltd is factory specializing in design,manufacture,train for transformer making equipment .Main products include transformer coil winding machine,foil winding machines,busbar machines ,silicon core assembly table,amorphous core and coil assembly table,insulation paper folding machine,corrugated paper making machine,core coil reshaping machine.

    Those products has been exported to Thailand,France,Vietnam,Myanmar,Pakistan,Australia,

    Turkey,India,Russia and so on.Has more than 20 patents,Certificate of CE,ISO9001:2008

    To satisfy customer after sales service,professional team responsible for training,guarantee customer products quality.Welcome old and new customer visit our factory.

  • specifications

Model JX-1 JX-2
Machine power 3kw 4kw
Max.bearing weight of spindle 1000kg 2000kg
Max.torque 1500NM 2500NM
Spindle speed

(rpm)

Low speed gear 0-46 0-28
High speed gear 0-200 0-100
Speed adjust method Mechanical multi-speed shift,stepless frequency control of motor
Standard square shaft 40*40*1000mm 40*40*1500mm
Adjust range of tailstock 750-1600mm 750-2000mm
Dimension of machine 2900*700*1380mm 3100*750*1420mm
Spindle height 900mm 1000mm
Max.setting turns of counter 9999.99
Counting method Electronic reversible counter with power-off memory function
  • video

Your Content Goes Here

  • Get Latest Price

$4600 – $8000 / Set FOB QINGDAO

MOQ: 1 Set

Shipping: Support Sea
freight lead Time:
Quantity(Sets) 1 – 1 >1
Est. Time(days) 30

After-sales Service Provided: Field maintenance and repair service, Field installation
