Transformer Winding Machine Price

Home/Transformer Winding Machine/Automatic Transformer Coil Winding Machine/Transformer Winding Machine Price

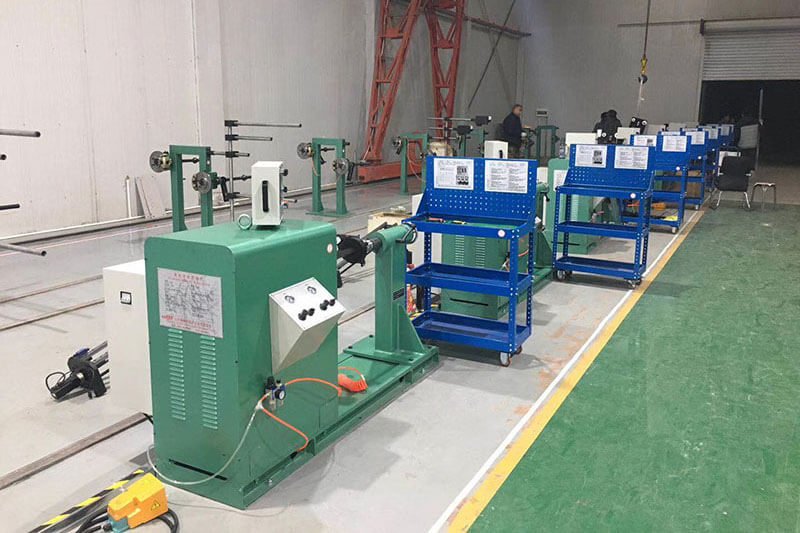

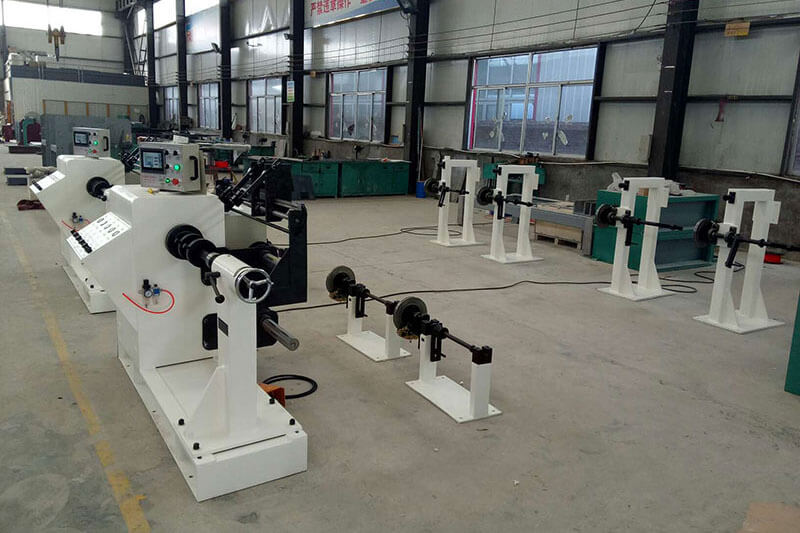

  • View Larger Image Transformer Winding Machine Price
  • View Larger Image Transformer Winding Machine Price
  • View Larger Image Transformer Winding Machine Price
  • View Larger Image Transformer Winding Machine Price
  • View Larger Image Transformer Winding Machine Price
Transformer Winding Machine Pricedirakesales@gmail.com2021-01-01T09:13:33+00:00
  • Description

  • Specifications

  • Video

  • Get Latest Price

  • Description

Transformer Winding Machine Price construction including a tubular steel frame. there are four standard types of coil winders, you can find the right machine for almost all needs. We also provide customized coil winders built to customer requirements.

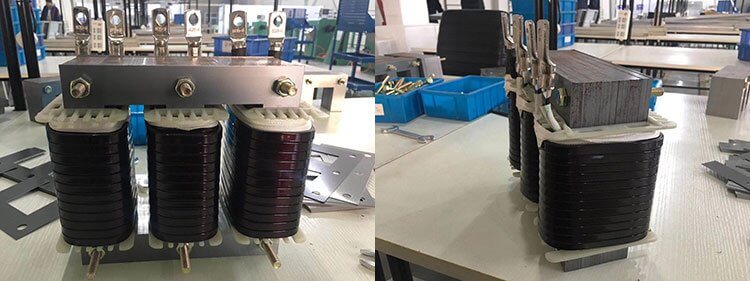

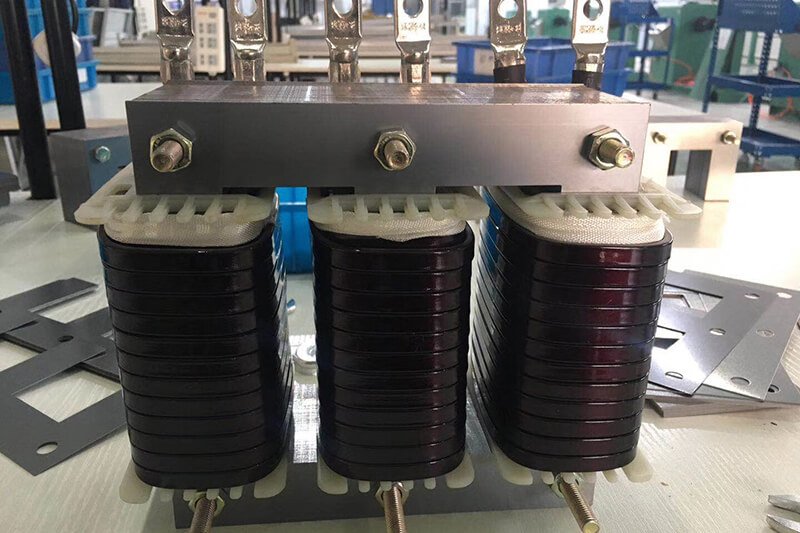

it is used in distribution transformers and Reactor. suitable for round or rectangular wire winding to round, oval, or rectangle coil.

Features for Transformer Winding Machine Price

1.with automatic wire guider makes sure that wire displacement synchronous with winding, guarantee minimum 0.01mm gap between each turn.

2.Max.speed can be 600rpm, speed improving 30%-200%

3.PLC control, just setting wire pitch and stopping at the desired turns.

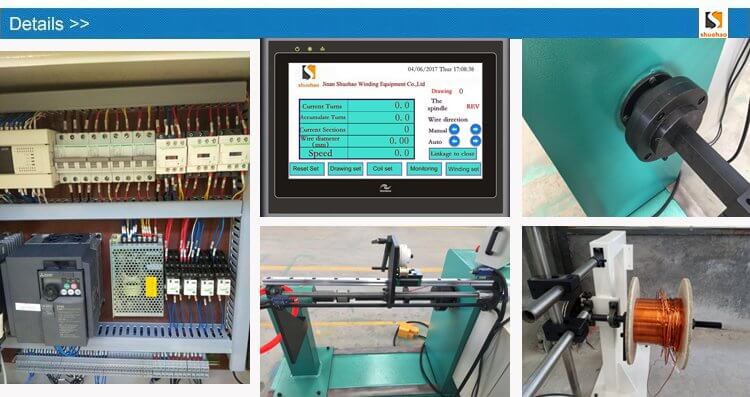

Composition

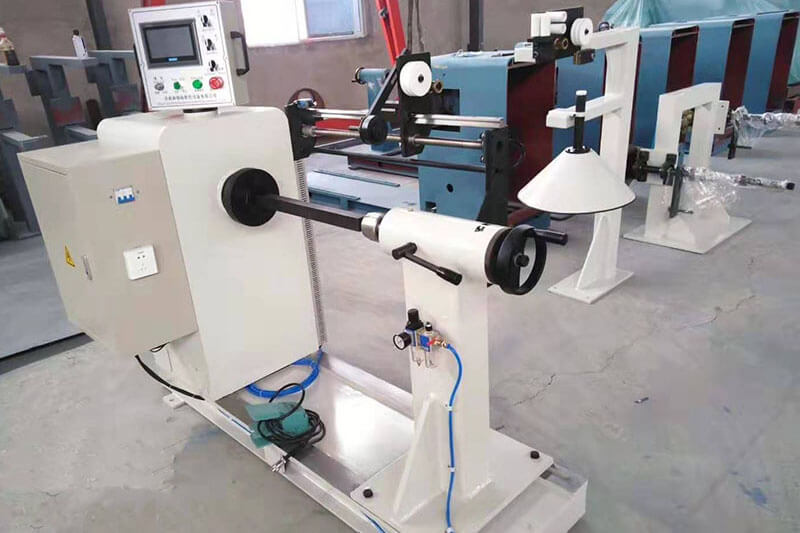

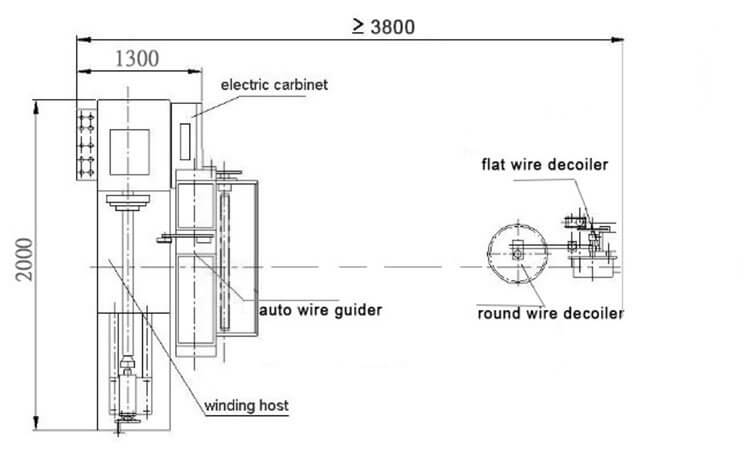

winding host

automatic wire guider

insulation layer decoiler

round wire decoiler

Two axis flat wire decoiler with air brake

PLC control

Operation touch screen

Pneumatic system and foot pedal

Transformer Winding Machine

Main Components Brand

Main components Supplier supplier
high-power frequency converser Mitsubishi Inovance of China
Servo System Mitsubishi Inovance of China
PLC system Mitsubishi Inovance of China
Touch screen Mitsubishi Inovance of China
Electric elements Schneider China
Pneumatic elements ATRATC(Taiwan) China
Linear guide HIWIN China

Accessories

winding host 1 set
insulation layer decoiler 3 sets
automatic wire guide traversing mechanism 1 set
round wire decoiler with tension control 1 set
Two axis flat wire decoiler with tension control 1 set
Square shaft 1 set

Shuohao also produce foil winding machine, LV coil winding machine, busbar machine, etc

  • Specifications

Model GRX-100 GRX-600 GRX-800 GRX-1000
Center height 850 850 850 850
Center distance of winding shaft 500mm 600mm 800mm 1000mm
Working torque 200Nm 300Nm 300Nm 300Nm
Winding Speed 0-600rpm 0-600rpm 0-600rpm 0-600rpm
Speed adjustment method stepless Frequency speed adjusting
Applicable coil size Outer diameter less than or equal to 400mm

Inner diameter more than or equal to 80mm

Axial height less than or equal to 400mm

Outer diameter less than or equal to 500mm

Inner diameter more than or equal to 60mm

Axial height less than or equal to 500mm

Outer diameter less than or equal to 600mm

Inner diameter more than or equal to 60mm

Axial height less than or equal to 800mm

Outer diameter less than or equal to 800mm

Inner diameter more than or equal to 60mm

Axial height less than or equal to 1000mm

Applicable coil weight 100kg 200kg 300kg 500kg
Coil cross section Round,oval,rectangle
Applicable Round wire diameter 0.3mm—3mm 0.3mm—3mm 0.3mm—3mm 0.3mm—3mm
Applicable Flat wire size Less than 1×9mm Less than 3×12mm Less than 3×12mm Less than 3×12mm
Automatic wire guider function Gap between each turns less than 0.01mm
Whole power 3kw 4kw 5kw 6kw
  • Video

  • Get Latest Price

Transformer Winding Machine Price

  • $6800- $12500 / Set | 1 Set/Sets (Min. Order)
  • Shipping: Support Sea freight
  • Delivery Time: 30 Days
  • After-sales Service Provided:
  • Field maintenance and repair service, Field installation
  • Warranty: More than 5 Years

Related Projects

Semi Automatic Paper Strip Wire Winding Machine
Semi Automatic Paper Strip Wire Winding Machine
Gallery

Semi Automatic Paper Strip Wire Winding Machine

Automatic Transformer Winding Machine
Automatic Transformer Winding Machine
Gallery

Automatic Transformer Winding Machine

Power Transformer Winding Machine
Power Transformer Winding Machine
Gallery

Power Transformer Winding Machine

Transformer Coil Winding Machine Price
Transformer Coil Winding Machine Price
Gallery

Transformer Coil Winding Machine Price
