Automatic Transformer Winding Machine

Home/Transformer Winding Machine/Automatic Transformer Coil Winding Machine/Automatic Transformer Winding Machine

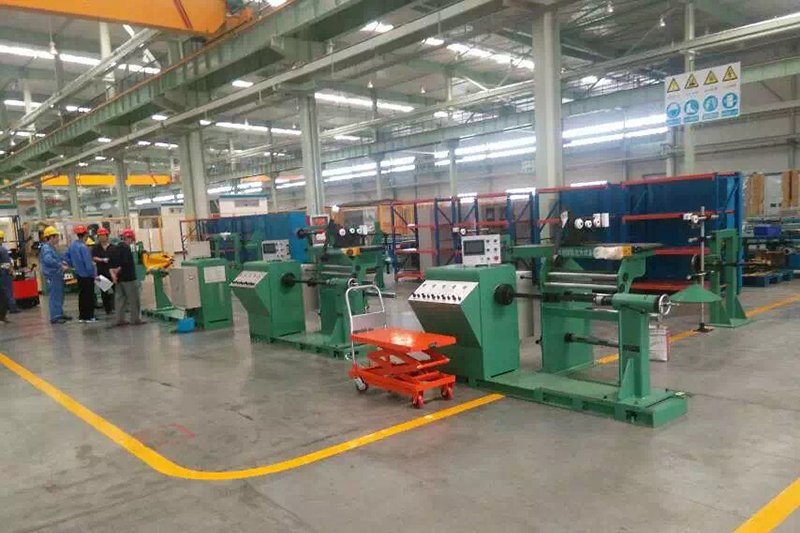

  • View Larger Image HT Coil Winding Machine
  • View Larger Image

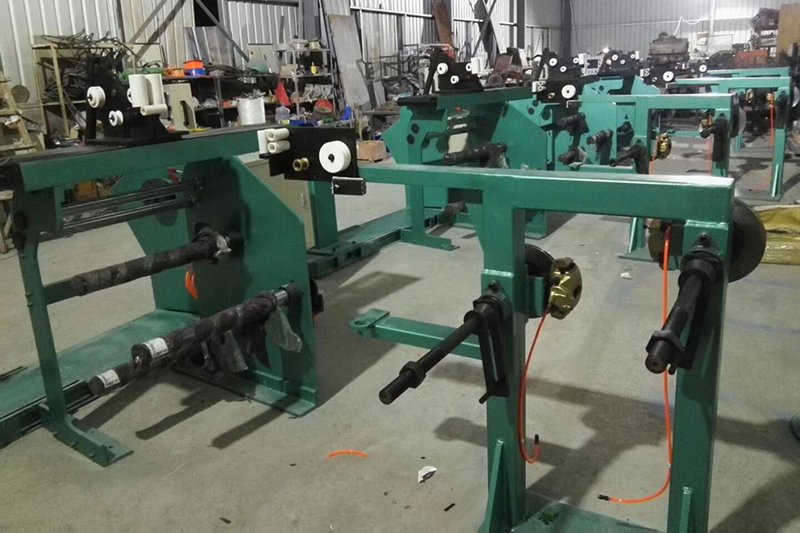

  • View Larger Image HT Coil Winding Machine
  • View Larger Image HT Coil Winding Machine
  • View Larger Image HT Coil Winding Machine
Automatic Transformer Winding Machinedirakesales@gmail.com2021-01-01T09:23:04+00:00
  • Description

  • Specifications

  • Video

  • Get Latest Price

  • Description

Automatic Transformer Winding Machine construction including a tubular steel frame. there are four standard types of wire winding machines, you can find the right machine for almost all needs. We also provide customized coil winders built to customer requirements.it combines winding host,wire guider and wire decoiler,used in distribution transformers and Reactor.suitable for round or rectangular wire winding to round,oval or rectangle coil.

Features

1.with automatic wire guider makes sure that wire displacement synchronous with winding,guarantee minimum 0.01mm gap between each turns.

2.Max.speed can be 550rpm, speed improving 30%-200%

3.PLC control, just setting wire pitch and stopping at the desired turns.

Composition for Automatic Transformer Winding Machine

winding host

automatic wire guider

insulation layer decoiler

round wire decoiler

Two axis flat wire decoiler with air brake

PLC control

Operation touch screen

Pneumatic system and foot pedal

SHUOHAO also produces Foil Winding Machine, Busbar Machine, HV Winding.

  • Specifications

Model GRX-1000
General
Dimension 3150×1950×1980mm
Weight 1600kg
Power supply 3×220(380)(415)V  50(60)HZ for you need
Whole power 6 KW
Coil
Coil diameter 60-800mm
Coil width (Max) 1000mm
Coil weight(Max) 1000kg
Coil cross section Round,oval,rectangle
Conductors
Round wire diameter Φ0.3mm—Φ3mm
Flat wire 4×15mm
Winding shaft
Speed adjustment method Frequency stepless control
Rotation speed (Max) 240rpm or 450rpm
Torque 300Nm or 1000Nm
Traverse type AC Servo Motor driven with ball screw,gap between each turns 0.01mm
Wire traverse width 1000mm
Square shaft size 50×50×1000mm or customer required
  • Video

  • Get Latest Price

Automatic Transformer Winding Machine

  • $9000 – $13500 / Set FOB QINGDAO
  • MOQ: 1 Set
  • Shipping: Support Sea
  • Delivery Time:30 days
  • After-sales Service Provided:
  • Field maintenance and repair service, Field installation
