transformer manual coil winding machine

Home/Transformer Winding Machine/transformer manual coil winding machine

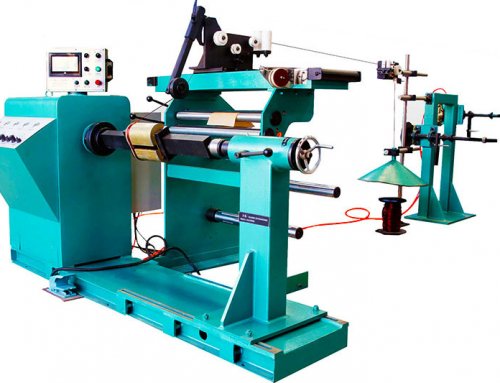

  • View Larger Image transformer manual coil winding machine
transformer manual coil winding machinedirakesales@gmail.com2020-10-07T04:39:08+00:00
  • Description

  • specifications

  • video

  • Get Latest Price

  • Description

machine is used for winding transformer.electric motor coils in many kinds shapes.

It is unique, professional, easy operating, digital showing and get high praise from user. many famous companies have use our machine like Toshiba of Japan, ABB,HYOSUNG etc.

Equipment features:

  1. transformer manual coil winding machine work reliable,easy to operate.start very smooth,can be jog frequently and stopped urgently.
  2. transformer manual coil winding machine the main spindle Forward and Reverse winding can be achieved by foot switch and control box.touch screen displays the numbers of coil winding with ability of counting forward and reverse winding,has Power-off memory function.
  3. All components adopts famous brand.

Machinery part

Name Manufacture Note
Chain Qingdao Main axis driving
Qiangzhu speed reducer Zhujiang Moving end box
Speed reducer Guomao Main axis speed reducing
Deep groove ball bearing Haerbin bearing Moving end box
Cone roller bearing Haerbin bearing Main axis, end axis loading

electric control part

Name Supplier
Transducer Mitsubishi
Programming controller PLC Mitsubishi
Touching screen Inovance
Encoder Shanghai
Electromagnetism 3 phase asynchronism motor Wannan motor
Foot switch Taiwan
Power button Schneider or DELIXI

Company information

Jinan Shuohao Machinery Co., Ltd is factory specializing in design,manufacture,train for transformer making equipment .Main products include transformer coil winding machine,foil winding machine,,busbar machine,silicon core assembly table,amorphous core and coil assembly table,insulation paper folding machine,corrugated paper making machine,core coil reshaping machine.

Those products has been exported to Thailand,France,Vietnam,Myanmar,Pakistan,Australia,

Turkey,India,Russia and so on.Has more than 20 patents,Certificate of CE,ISO9001:2008

To satisfy customer after sales service,professional team responsible for training,guarantee customer products quality.Welcome old and new customer visit our factory.

  • specifications

No. Item     Parameters
1 Type RX-3
2 Max bearing weight(kg) 3000
3 Winding speed(r/min) 0-60
4 Spindle center height(mm) 1100
5 Motor power(Kw) 5.5
6 Distance between main axis and end box(mm) 1000-2500
7 Diameter of faceplate 600mm
8 Rib quantity of faceplate 6
9 T type slot M20
10 Accessory Square shaft  one piece

Square hole spacer   one piece

  • video

Your Content Goes Here

  • Get Latest Price

$8000 – $15000 / Set FOB QINGDAO

MOQ: 1 Set

Shipping: Support Sea
freight lead Time:
Quantity(Sets) 1 – 1 >1
Est. Time(days) 45

After-sales Service Provided: Field maintenance and repair service, Field installation
