| FOB Qingdao Price | $8,300.00 – $9,100.00/ Set |
|---|---|
| MOQ | 1 |
| Lead time | 15 days |
| Warranty | 12 months |
Hydraulic Busbar Bending Machine combines bending,cutting and punching unit together;three units can operate at the same time as controlled by three pumps.its Usage and main features please find below.if not suitable for you,pls check more busbar machines models.
Usage for Hydraulic Busbar Bending Machine
it is a special machine for cutting,bending and punching on aluminum and copper bus bars.
Main features
DGWMX series busbar Machines combines punching, bending and cutting together as well as some other functions such as embossing, twisting, flattening, pressing tie-in, etc.
Three electric motors and pumps make sure that workers can operate the cutting unit,punching unit and bending unit at the same time.

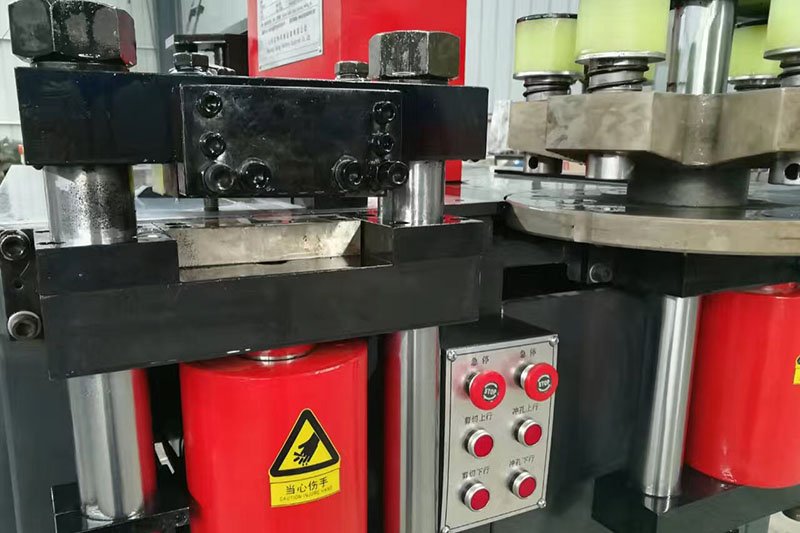

1.Cutting unit:it uses punch shearing,the incision interface is flat,no droop and burrs and waste,beautiful shape.

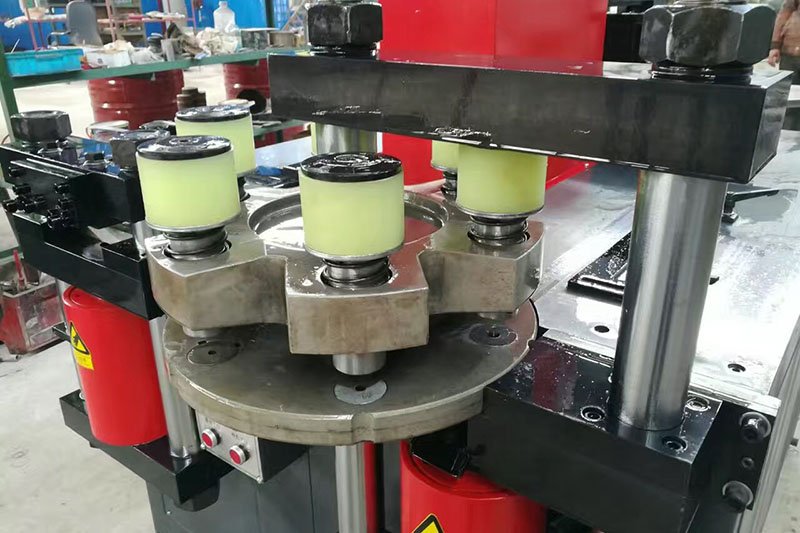

2.Punching unit:uses an united four/six/eight mode turn plate in tooth shape to make sure the upper mold and the lower mold are absolutely in the same center,improving the mold concentricity and longtening the working life. The turnplate is in tooth shape with good view and high strength. No need to frequently change molds, labor intensity is highly reduced. It is easy and quick to use.

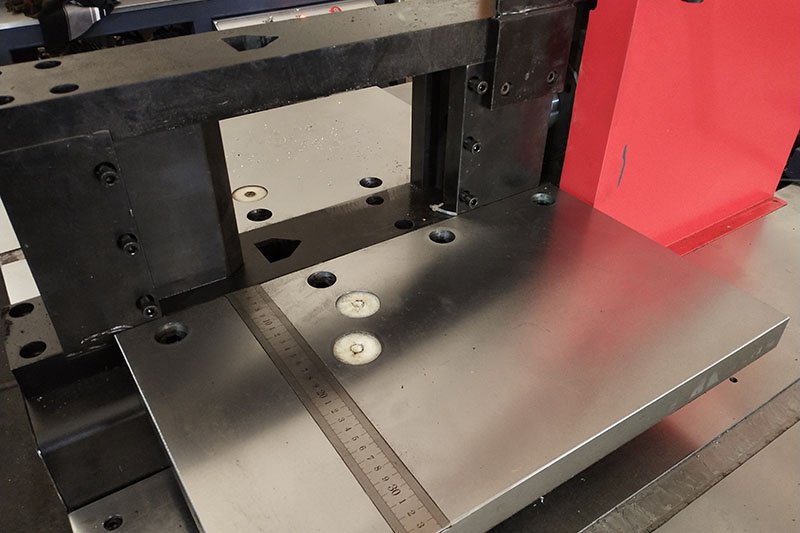

Producing efficiency is obviously higher than a traditional one.Newest update:add table with ruler on punching unit,it is much easier to confirm punching position.
3.Bending unit:
double worktable.ensures bending,cutting and punching unit can real working at the same time.
| Function | Item | ZTMX-503K |
| Punching | Max power(KN) | 500 |
| Punching
Diameter(mm) |
Ø4.3～34 | |
| Max thickness(mm) | 16 | |
| Max width(mm) | 250 | |
| Shearing | Max thickness(mm) | 16 |
| Max width(mm) | 250 | |
| Bending | Max power(KN) | 500 |
| Max width(mm) | 250 | |
| Vertical Bending | Max width (mm) | 120 (12mm
Thick copper) |
| Spot pressing | have | |
| Flat pressing | have | |
| U-shape bending | have | |
| Outline Dimensions | 1850x1500x1400 | |
| Power of Main Motor | (KW) | 3×5.5 |
| Weight | 1950kg |
