High and Low Voltage coil winding machine

Home/Transformer Winding Machine/Low Voltage Transformer Coil Winder/High and Low Voltage coil winding machine
  • View Larger Image High and Low Voltage coil winding machine
  • View Larger Image High and Low Voltage coil winding machine
  • View Larger Image High and Low Voltage coil winding machine
  • View Larger Image High and Low Voltage coil winding machine
  • View Larger Image High and Low Voltage coil winding machine
High and Low Voltage coil winding machinedirakesales@gmail.com2020-09-15T08:50:56+00:00
  • Description

  • Specifications

  • Video

  • Get Latest Price

  • Description

Instruction

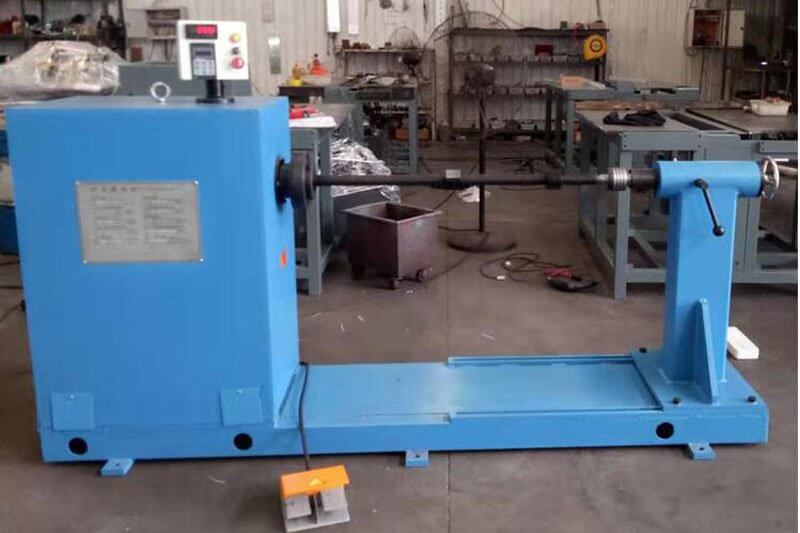

This machine is used for winding transformer,electric motor coils in many kinds shapes.

It is unique, professional, easy operating, digital showing and get high praise from user. many famous companies have use our machine like Toshiba of Japan, ABB,HYOSUNG etc.

main axis parts

Driving parts are in main axis box. Power is exported from motor and transferred to speed reducer through belt pulley, then arrive at main axis by chain, finally the coil winding mould is rotated by winding connection disc in the front of main axis.

This part is mainly composed by main axis box, PLC, motor seat, motor, speed reducer, belt wheel, chain wheel, main axis, winding expanding mandrel disc, etc. tightly driving method is taken between speed reducer and main axis, which and avoid slipping and keep accurate driving rate and efficiency. Electromagnetism braking motor can assure braking immediately and accurately, main axis can be locked automatically. In order to use conveniently for client, changing structure is taken in the front of main axis, coil winding expanding mandrel can be changed according to client requirement easily.

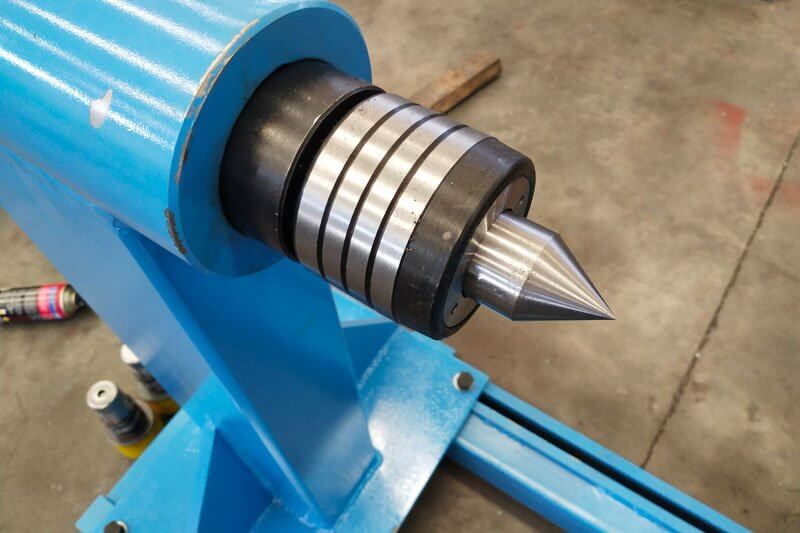

This parts is mainly composed by end box body, rack and pinion, small speed reducer, telescopic shaft, coil winding expanding mandrel connection disc, etc.

The end box can be moved on seat in front and back side, loosen the bolt in both side of end box to move box according to the indicator, then tighten bolt. Telescopic axis is 0~200mm, we can modify it through handle, after finished it, tighten pins. Considering the defect of traditional coil winding machine, we make more professional design(check the following picture), which improve strength, bearing ability, shape changing highly. We use T-type screw for movement in front and back. Locking and moving are finished by handle very conveniently.

bottom seat

The bottom seat is incorporated and composed by high quality steel sheet and H-type steel, which assure the strength, accurate, pretty, stability.

Performance and working environment

performance:

1) reliable working, convenient operation; starting and braking smoothly.

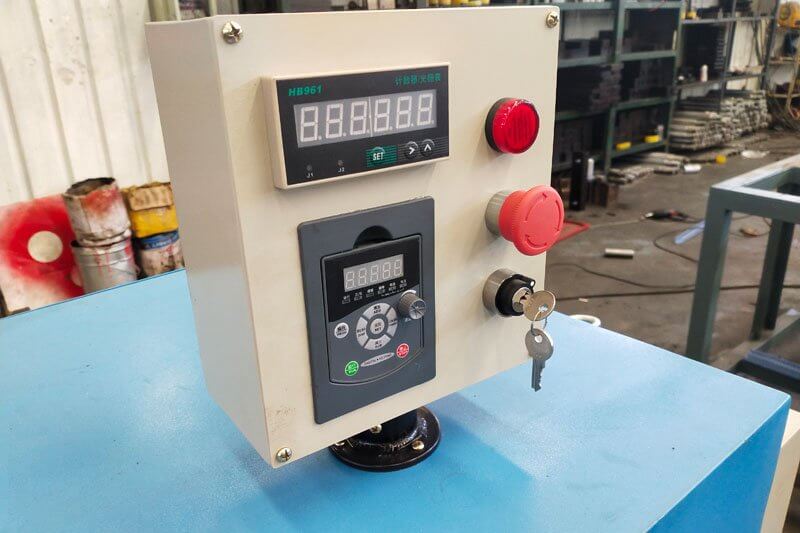

2) positive and reversal winding can be achieved by foot switch and control box. Screen can display the winding number of positive and reversal, and remember the data when the electric stops.

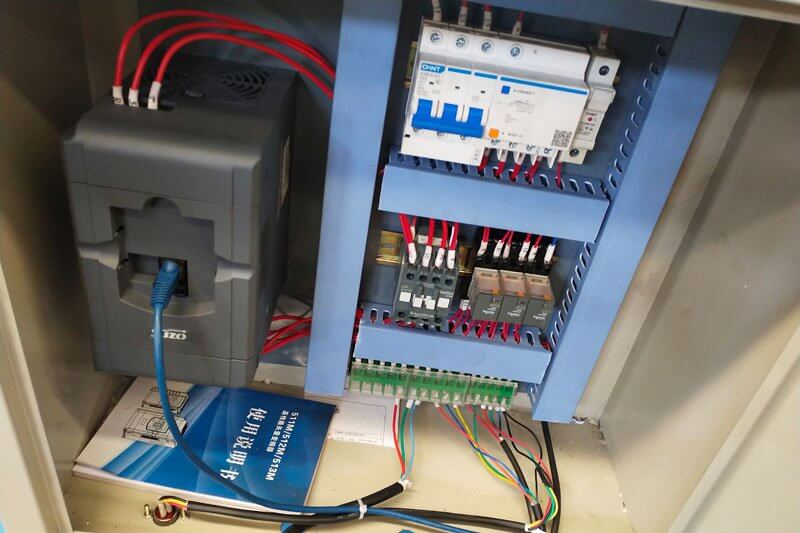

3) parts of machine are standard and bought from formal manufacture. Transducer, PLC and screen are all imported from famous and high quality foreign companies.

4) safe and reliable working; flexible operating, no blocking.

5) outline is tidy and pretty.

working environment

Normal working environment

1) right installation on steady foundation

2) clean environment without vibration, corrosion and strong electromagnetism.

3) power pressure zone should not be over the setting press ±10%

Configuration

Name Manufacture Note
Chain Qingdao Main axis driving
Qiangzhu speed reducer Zhujiang Moving end box
Speed reducer Guomao Main axis speed reducing
Deep groove ball bearing Haerbin bearing Moving end box
Cone roller bearing Haerbin bearing Main axis, end axis loading

Transformer manufacturing equipment, foil winding machine, busbar machine

  • Specifications

No. Item     Parameters
1 Type CRX-1
2 Max bearing weight(kg) 1000
3 Winding speed(r/min) 0-120rpm
4 Spindle center height(mm) 840mm
5 Motor power(Kw) 3kw
6 Distance between main axis and end box(mm) 800-1500mm
Diameter of faceplate Φ198mm
Max.Size of conductor 3×12mm
Counting method Display touch screen
Dimension of machine 3000×600×1200mm
Power supply 380V,50HZ 3 PHASE
  • Video

Your Content Goes Here

  • Get Latest Price

$2650 – $4000 / Set FOB QINGDAO

MOQ: 1 Set

Shipping: Support Sea
freight lead Time:
Quantity(Sets) 1 – 1 >1
Est. Time(days) 30

After-sales Service Provided: Field maintenance and repair service, Field installation
