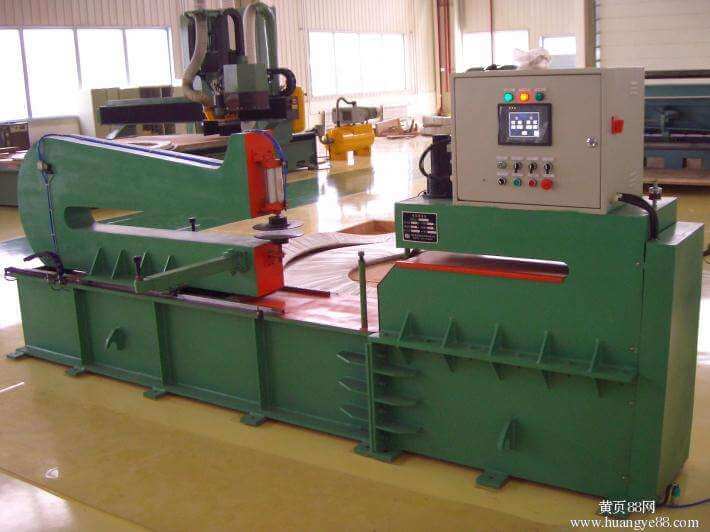

Cutting Machine for Pressboard Ring

Home/Transformer Insulation Machine/Cutting Machine for Pressboard Ring
  • View Larger Image Cutting Machine for Pressboard Ring
  • View Larger Image Cutting Machine for Pressboard Ring
Cutting Machine for Pressboard Ringdirakesales@gmail.com2020-12-25T09:37:49+00:00
  • Description

  • Specifications

  • Video

  • Get Latest Price

  • Description

Cutting Machine for Pressboard Ring is mainly used for cutting various kinds of insulated pressboard rings, suitable for transformers, motors and other industries.Shuohao offers many types of Transformer Insulation Machine.

Characteristics for Cutting Machine for Pressboard Ring

Model:YJ10, YJ20

  • Easy adjustment. By adjusting the position of the rear frame and locking the rear tail frame, you can cut rings of different diameters.
  • It is small in size, easy to operate, and saves machine floor space.
  • By adjusting the position of the cutter on the cutter shaft to adapt to workpieces of different thicknesses, the upper and lower cutter shafts are active, and the cutting burr is small.

Model:SKYJ-20, SKYJ-30

  • This cutting machine has a wide processing range and a high degree of production automation.
  • The workpiece processing control is protected by a color touch screen Chinese display password, easy to understand
  • The workpiece size positioning and tool feeding are controlled by PLC program. The servo motor drives the workpiece with high accuracy and precision, which saves time and labor and has high production efficiency.
  • There are curved arm adjustment brackets on both sides of the machine to keep the cardboard flat when cutting large cardboard.
  • Both the upper and lower tool spindles adopt an active method, and the speed can be reversed by frequency conversion. The tool design is reasonable, the cutting edge of the workpiece is smooth, the burr is small, and the workpiece quality is high.
  • Specifications

Parameter YJ-10 YJ-20 SKJ-20 SKJ-30
Main motor power(kw) 0.55 0.55 3 3
Machine weight(Kg) 300 500 1800 2100
Spindle rotation speed(r/min) 200-1000 200-1000 0-1400frequency

Speed regulation

0-1400frequency

Speed regulation

Power voltage (V) 380 380 380 380
diameter rangeof Round cutting (mm) 90-1000 200-2000 300-2000 400-2000
Thickness of Round cutting plate (mm) 0.5-3 0.5-3 1-3 1-3
Tailstock moving speed manually manual Automatic 0-7.5(servo) Automatic 0-7.5(servo)
Tailstock positioning accuracy manual manual ±0.05 ±0.05
Operation method Electric Electric Numerical automatic Numerical automatic
Dimensions(mm) 1325×420×1100 1960×420×1000 3800×780×1500 4300×780×1500
  • Video

Your Content Goes Here

  • Get Latest Price

$9000 – $13500 / Set FOB QINGDAO

MOQ: 1 Set

Shipping: Support Sea
freight lead Time:
Quantity(Sets) 1 – 1 >1
Est. Time(days) 30 Negotiable

After-sales Service Provided: Field maintenance and repair service, Field installation
