Coil Winding Machine for 3D Core Transformer

Home/3D CORE Coil Winding Machine/Coil Winding Machine for 3D Core Transformer
  • View Larger Image
  • View Larger Image
  • View Larger Image
Coil Winding Machine for 3D Core Transformerdirakesales@gmail.com2022-04-25T04:13:09+00:00
  • Description

  • Specifications

  • Get the latest price

  • Description

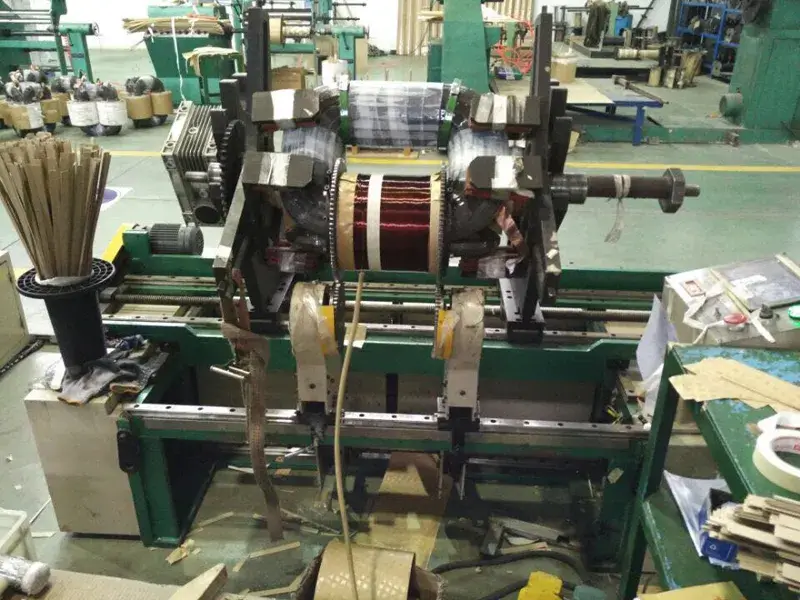

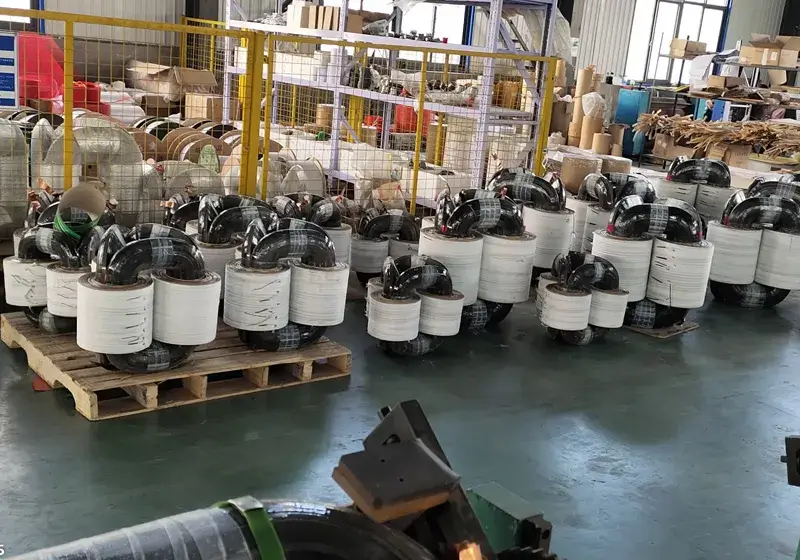

Coil Winding Machine for 3D Core Transformer is special coil winding equipment for producing closed stereo roll iron core transformer.



Composition:

The machine is mainly consists of core support and turnover transmission device, winding gear rack, coil winding transmission device, counter,

electric control box, machine frame.

Main Features:

1.Core is placed by horizontal type,the core center height and forward

and backward location can be adjusted. core turnover device can let core rotate around its central axis.

2. Through core rotation around a central axis, location adjustment of the core support device,let core column need to wind arrive to suitable coil winding position.

3.when wind coil,winding gear at two ends of coil adopts neck bush positioning to assure vibrations of winding gear will not let winding gear rub core.

4.The signal plate with magnetic steel which installed on the motor output shaft,let sensor produce pulse signal,intelligent reversing electronic counter calculate pulse signal,make pulse signal convent to winding turns and showing automatically .the counter can recognize forward and backward rotation,when counter reaches set turns will stop and has power memory function.

5.The machine has characteristic of widely usage,simple adjustment,convenient operation,precise counting,reliable working.

  • Specifications

5,Technical parameter:

Model TRX-1
core winding type Closed type Three-dimensional
adaptive capacity 30-800kva
Max.overall dimension of core:height 1100mm
Max.overall dimension of core:window height 700mm
Max.overall dimension of core:Centre distance 450mm
Max.overall dimension of core:Diameter 250mm
Coil winding method Horizontal
Speed of winding power shaft 200r/min
Counting method Electronic counting
Motor power 4kw
Hv and lv coil decoiler Magnetic clutch hv decoiler
Overall dimension of machine 1240×800×750mm
  • Get the latest price

$10000 – $15000 / Set FOB QINGDAO

MOQ: 1 Set

Shipping: Support Sea
freight lead Time:
Quantity(Sets) 1 – 1 >1
Est. Time(days) 45
