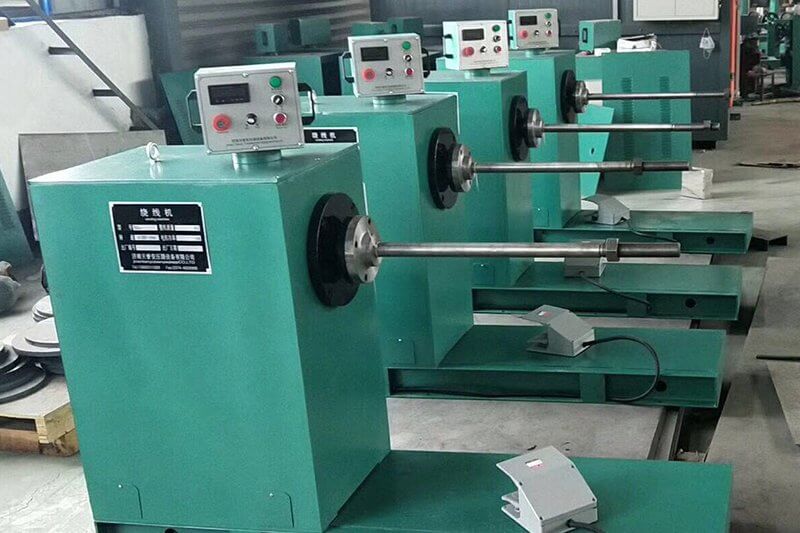

Small Winding Machine RX-0.5 is used for winding transformer. electric motor coils in many kinds of shapes.
It is unique, professional, easy operating, digital showing and get high praise from user.
customers like Toshiba of Japan, ABB, HYOSUNG, etc.
With CE, ISO9001 certificate.
Composition of Small Winding Machine
It is mainly made of main axis box, bottom seat, control system, and footswitch.
1.main axis parts
Driving parts are in the main axis box.
Power is exported from the motor and transferred to speed reducer through belt pulley.
then arrive at the main axis by chain.
finally, the coil winding mould is rotated by winding connection disc in the front of the main axis.
2.electric control parts working principle
This part is composed of power box and PLC control box.
Transducer, PLC and touch screen are all imported by MITSUBISHI of Japan, Siemens of Germany, and so on. high quality and famous brand.
Electric part is composed of a mechanical loading system and measure control part.
machine loading system control transducer through PLC to achieve controlling speed.
measure control part is encoder note the main axis speed.
then the data is deal with and sent to touch screen.
It can memory in electric stopping and data adverse.
Configuration
| Name | Manufacture | Note |
| Chain | Qingdao | Main axis driving |
| Speed reducer | Guomao | Main axis speed reducing |
| Cone roller bearing | Haerbin bearing | Main axis |
| Name | Supplier | Note |
| Transducer | Mitsubishi | |
| Programming controller PLC | Mitsubishi | |
| Touching screen | Mitsubishi | |
| Encoder | Shanghai | |
| Electromagnetism 3 phase asynchronism motor | Wannan motor | |
| Foot switch | Taiwan | |
| Power button | Schneider or DELIXI |
| No. | Item | Parameters |
| 1 | Type | RX-05 |
| 2 | Max bearing weight(kg) | 500kg |
| 3 | Main axis rotation(r/min) | 0-200rpm |
| 4 | Main axis center height(mm) | 800mm |
| 5 | Telescopic length of the Telescopic shaft | 0-150mm |
| 6 | Main motor power(KW) | 3 |
| 7 | Square shaft | Make for customer requirement |
