| FOB Qingdao Price | $210.00 – $950.00/ Set |
|---|---|
| MOQ | 1 |
| Lead time | 15 days |
| Warranty | 12 Months |
Portable Busbar Bending Machine is used to cutting,punching and bending on cooper and aluminum busbar.

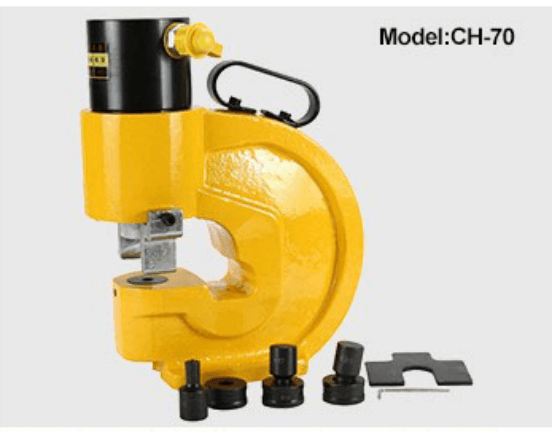

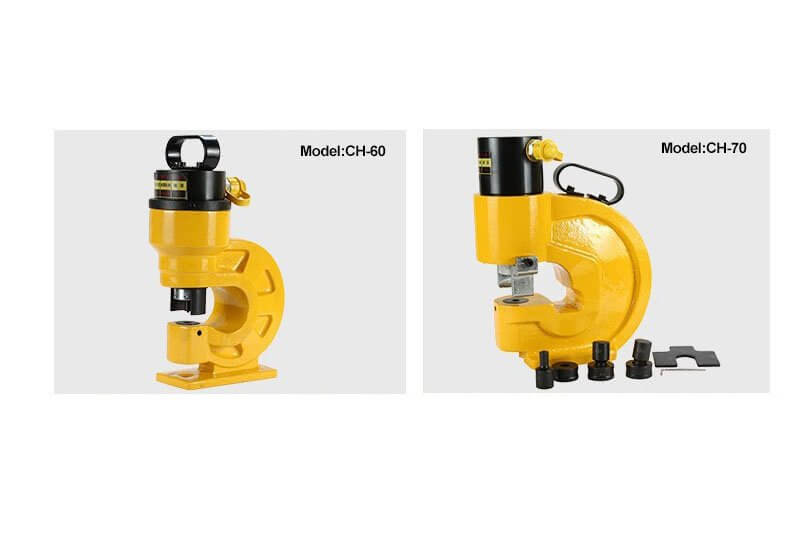

Puncher of Portable Busbar Bending Machine:CH-70
Feature
split type hydraulic punching machine, specially used for punching metal plates such as angle iron, flat iron, copper plate, etc. It is especially suitable for operation in the field by electric power, construction and other industries.
| Model | Throat depth | weight | Power | Punch diameter for aluminum and cooper busbar | Punch diameter for iron plate |
| CH-70 | 110mm | 35kg | 35tons | 3-12mm | 3-10mm |
| Punch and die sets | 2 sets of Φ9mm,φ11mm,φ13mm,φ17mm
2 sets of Oblong Φ9 x 12mm,Oblong Φ11 x 15mm ,Oblong Φ13 x 18mm |
||||

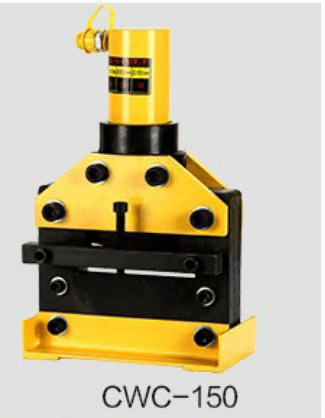

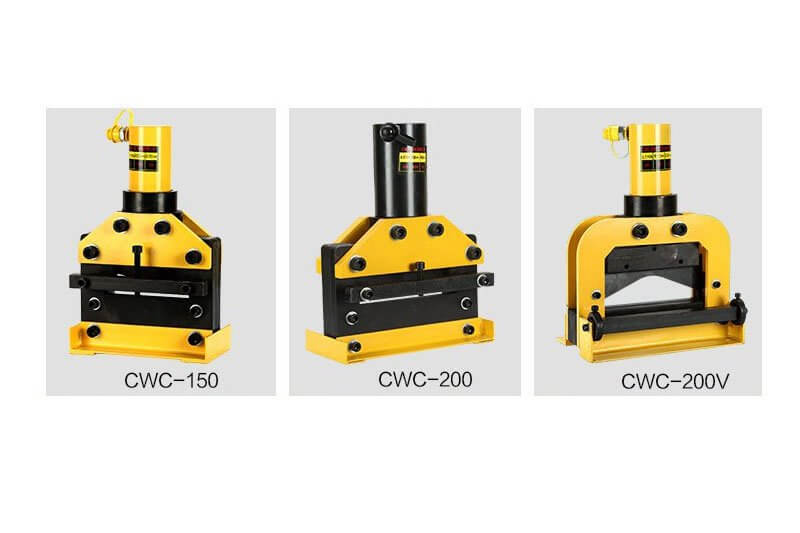

Cutter of Portablebusbar bending machine :CWC-150
| Model | weight | power | Max.cutting width for aluminum and copper busbar | Max.cutting thickness for aluminum and copper busbar |
| CWC-150 | 30kg | 15 tons | 150mm | 3-10mm |
Feature
is a tool for cutting copper and aluminum busbars. The cutter is made of alloy steel and heat treated. The fracture is smooth and tidy, flat and without deformation, and there is no waste on one side.

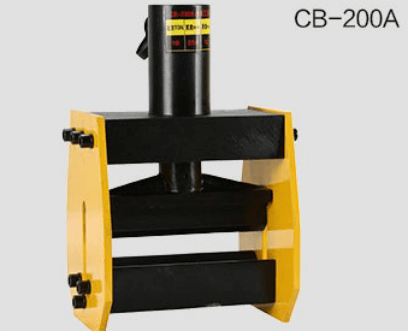

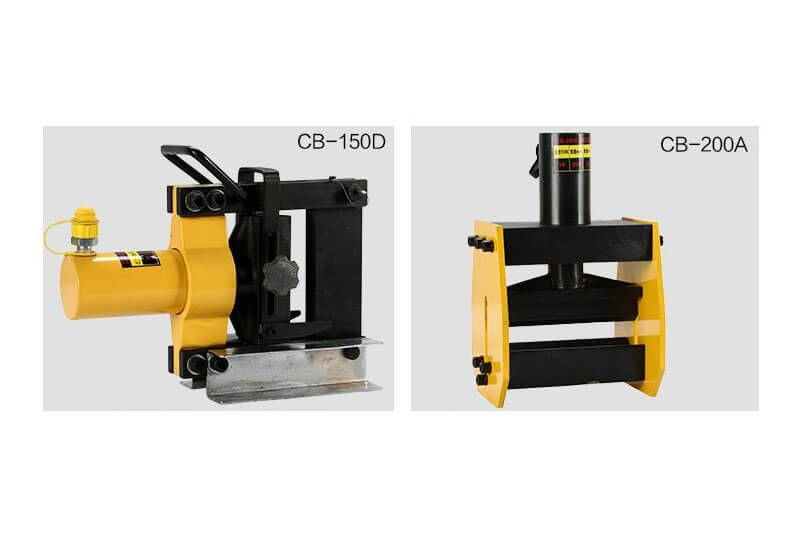

Bender :CB-200A
| Model | Weight | Power | Max Bending width | Max Bending thickness |
| CB-200A | 29KG | 30T | 200MM | 3-12mm |
It need to buy separate pump.
Features
is a splittable type. When bending a long bronze medal, the N-type or L-type can remove the card, so that the whole row can be taken out without hindrance, and the busbar can be bent in the vertical plane by 0-135 degrees.

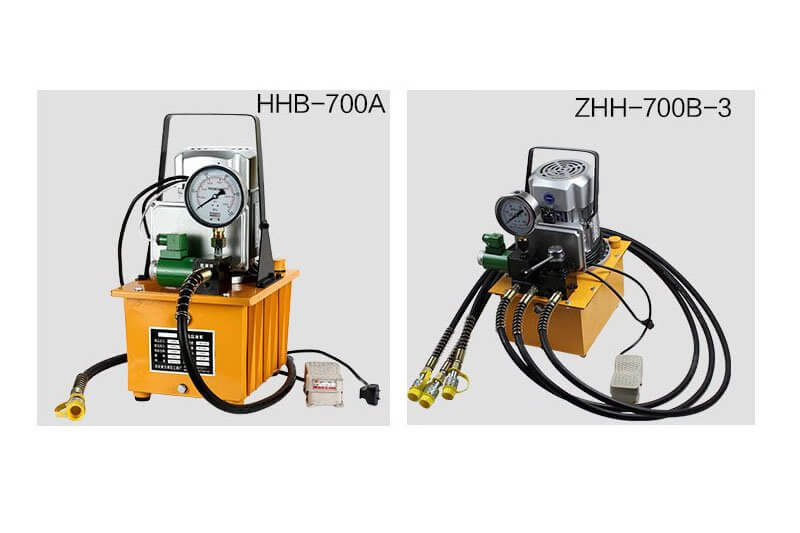

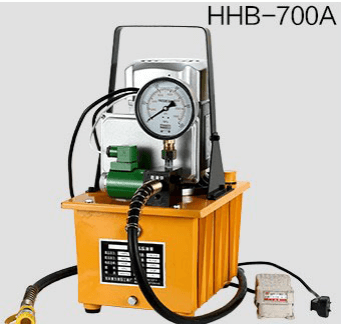

| Model | High voltage pressure | Low voltage pressure | High voltage flow | Low voltage flow | Motor power | Fuel tank capacity |
| HHB-700A | 70MPA | 7MPA | 0.9L/MIN | 5L/MIN | 700W | 7L |
Pls be noted,The electric pump is delivered without oil. It is recommended to use No. 7, No. 8, No. 15 hydraulic transmission oil or No. 32 anti-wear hydraulic oil.
| Model | High voltage pressure | Low voltage pressure | High voltage flow | Low voltage flow | Motor power | Fuel tank capacity |
| HHB-700A | 70MPA | 7MPA | 0.9L/MIN | 5L/MIN | 700W | 7L |
Pls be noted,The electric pump is delivered without oil. It is recommended to use No. 7, No. 8, No. 15 hydraulic transmission oil or No. 32 anti-wear hydraulic oil.

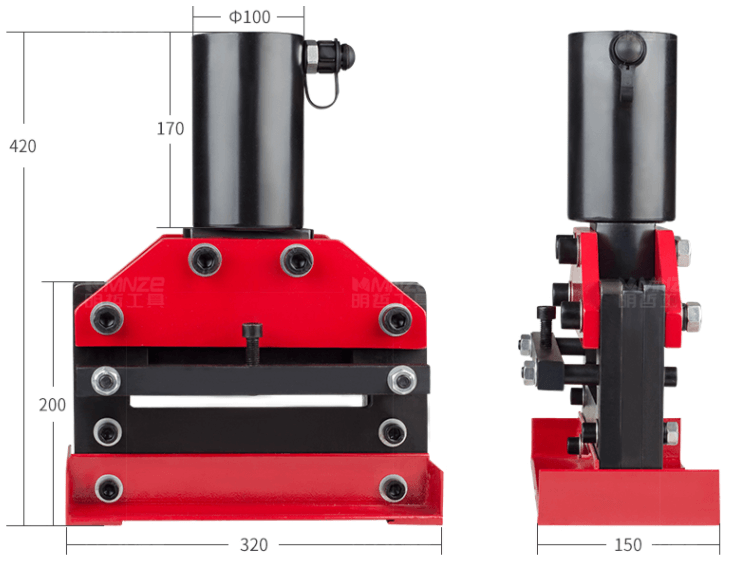

Dimension:
